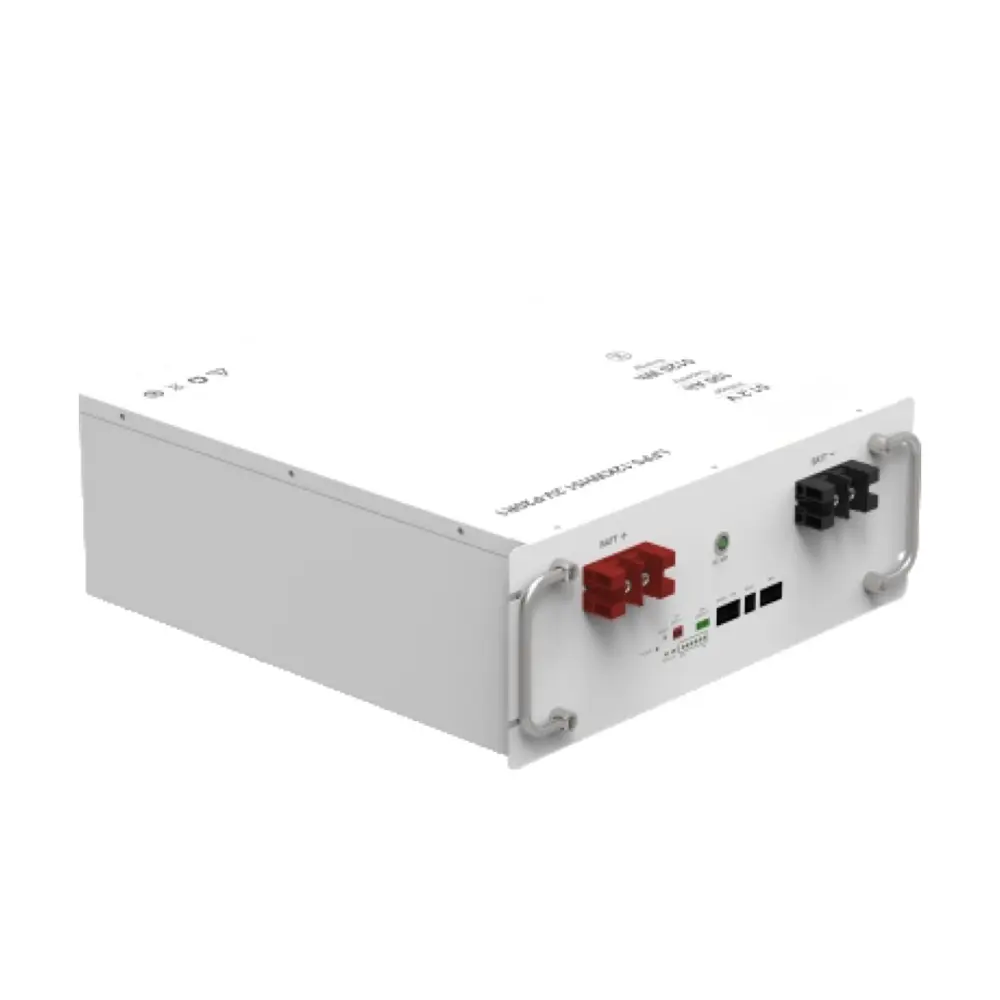

Rack-Mounted 51.2V 5.12KWh LiFePO4 Battery with 5000+ Cycles, LED Monitoring, and Scalable Parallel Design for Solar, UPS, and Industrial Applications

P/N: LFP5.12KWH51.2V-P20R1

51.2V 100Ah 5.12KWh

Lithium iron Phosphate Battery

In-Built BMS

Designed for Home Energy Storage System

Long Cycle Life: Over 3000/4000/5000 cycles at 80% DOD (25°C, 0.5C).
Safety Assured: Built-in protection against overcharge, over-discharge, over-temperature, low temperature, overcurrent, and short circuits.
Advanced Compatibility: Compatible with most inverters and supports RS485, CAN, and RS232 communication.
Expandable Capacity: Supports up to 8 battery packs in parallel for larger energy systems.
Monitoring Features: Equipped with an LCD display to track SOC, voltage, temperature, and alarm status.
Premium Quality: Built with A-grade prismatic LiFePO4 cells.
Robust Design: Metal casing for enhanced durability.
Certifications: UN38.3, MSDS, IEC62619, EN IEC61000-6-1/2/3/4 compliance.

Model	LFP4.8KWH 48V-P20R1	LFP5.12KWH 51.2V-P20R1	LFP5.12KWH 51.2V-P20R2EV50	LFP10.5KWH 51.2V-P20R1GF30
Battery Type	LiFePO4
Nominal Voltage (V)	48	51.2
Nominal Capacity (AH)	100			205
Energy (WH)	4800	5120		10496
Pack Mode	15S1P	16S1P
Continuous Discharge Current (A)	50			100
Charge Cut-off Voltage (V)	54	57.6
Discharge Cut-off Voltage (V)	39	41.6
Max.Charge Current (A)	50		100	150
Max.Discharge Current (A)	100			200
Peak Discharge Current (A)	130@10S		120@10S	220@5S
Recommend Discharge Current (A)	50			100
Recommend Discharge Depth (％)	80
Cycle Life	＞4000 cycles (25°C, 0.5C ) 80% DOD		＞5000 cycles (25°C, 0.5C ) 80% DOD	＞3000 cycles (25°C, 0.5C ) 80% DOD
Communication	RS485/CAN/RS232
Display	LED	LED	LCD	LED
Charge&Discharge Temperature (℃)	Charge: 0°C~+55°C / Discharge: -20°C~+60°C
Optimal Storage Temperature (℃)	5℃～+35℃
Recommend Storage Humidity	60%±20% RH
Terminal	M6			M8
Dimensions (LWH) (mm)	532482177			586550232
Weight (Kg)	42.5±0.5	45.4±0.5	45.6±0.5	90.1±0.5
Certiﬁcate	UN38.3/MSDS/IEC62619/EN IEC61000-6-1/2/3/4		UN38.3, MSDS
IP Class	IP20

Energy Storage Systems: Designed for residential and commercial energy storage solutions.
Renewable Energy Projects: Ideal for solar and wind power integration.
Data Centers and IT: Reliable backup for uninterrupted power supply (UPS).
Industrial Use: Suitable for high-demand applications requiring consistent and safe power.

Scalability: Expandable to meet growing energy storage needs.
User-Friendly Monitoring: Real-time tracking of battery status via LCD/LED display.
Durability and Longevity: A-grade LiFePO4 cells ensure high performance over years of operation.
Safety First: Comprehensive protections and certifications for worry-free use.
