Products

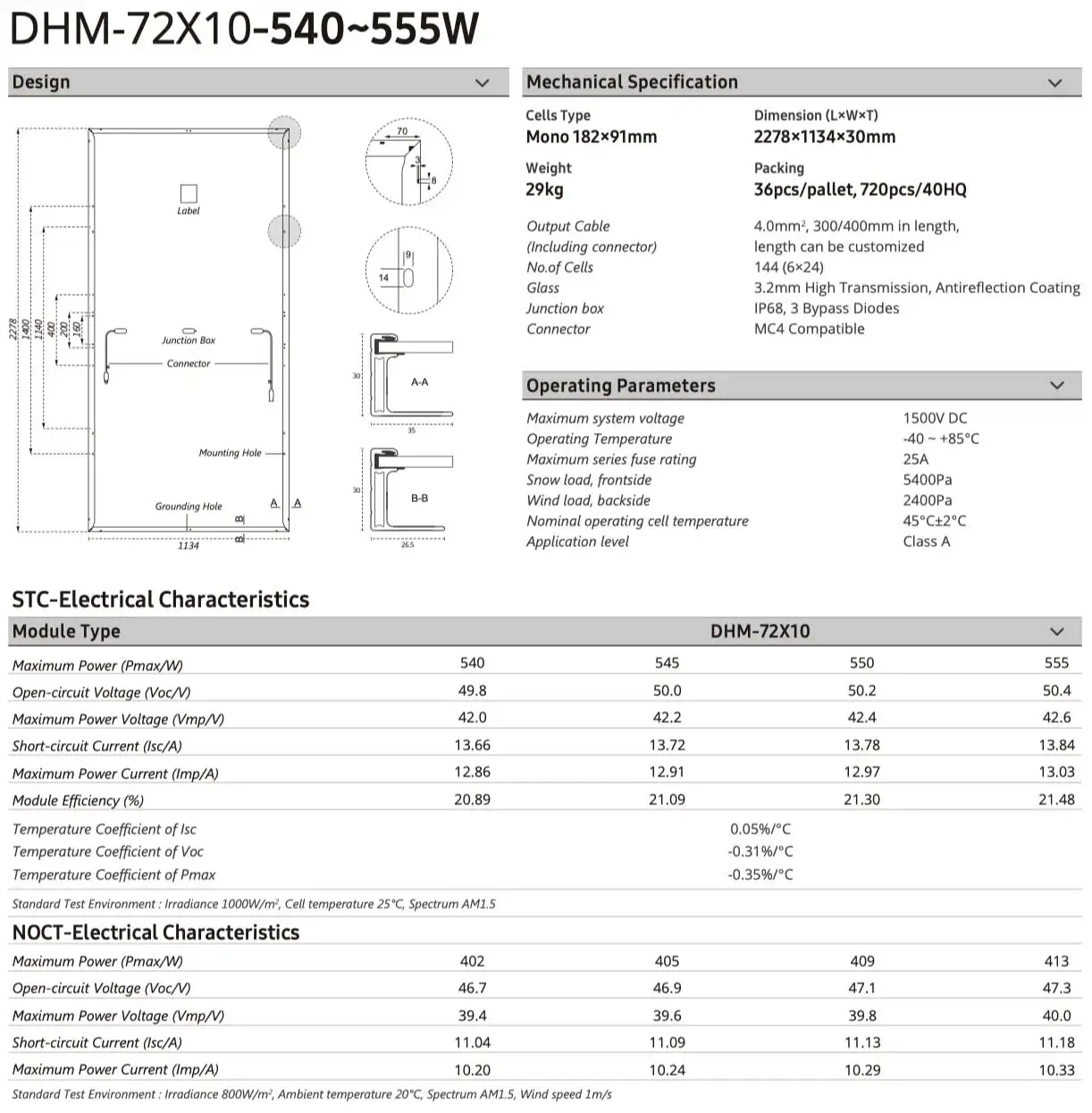

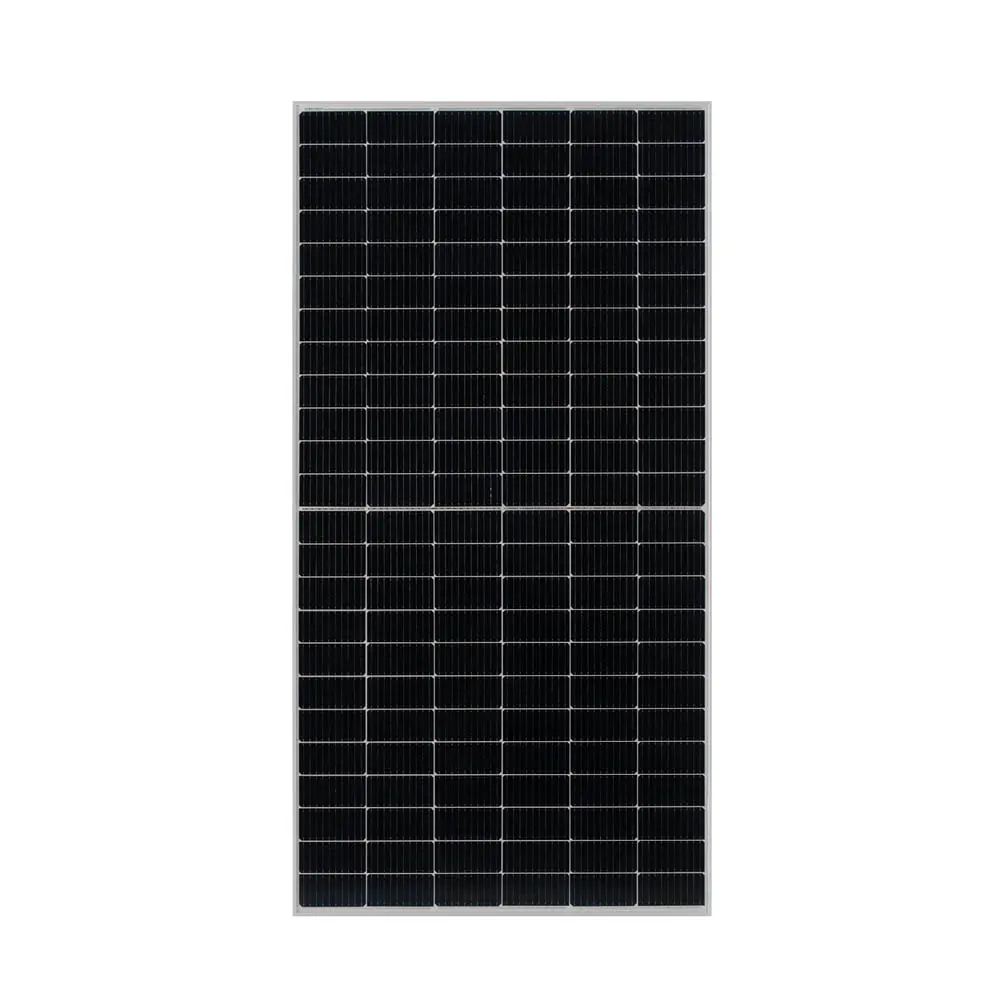

On Grid 540W~555W PV module


On Grid 540W~555W PV module

P/N: DHN-72X10

540/545/550/555 Watt

Mono 182 Cells

2278 x 1134 x 30mm

Single Glass

On Grid Solar Plant

Parterner with DAH Solar

Comprehensive Products & System Certificates

IEC 61215 / IEC 61730 / CE / INMETR

ISO 45001

2018/International Standards for occupational health & safety

ISO 14001

2015/Standards for Environmental Management System

ISO 9001

2015/Quality management system

12 years - Material & technology warranty

25 years - Linear power output warrant

More Power Generation

Larger size of the light receiving area and higher module conversion efficiency

10 Busbar Technology

Higher power collection density improves power generation

Stable Generation Performance

Guaranteed 0~+5W positive tolerance and slower power attenuation: first year ≤2%, 0.55% per year from 2-25

Higher Power Gains and Lower Losses

Excellent low irradiance performance and low shadow loss

Process Optimized and Upgraded

Lower risk of hot spot and stronger anti-PID ability

Strong Environmental Adaptability and Great Durability

Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa)
