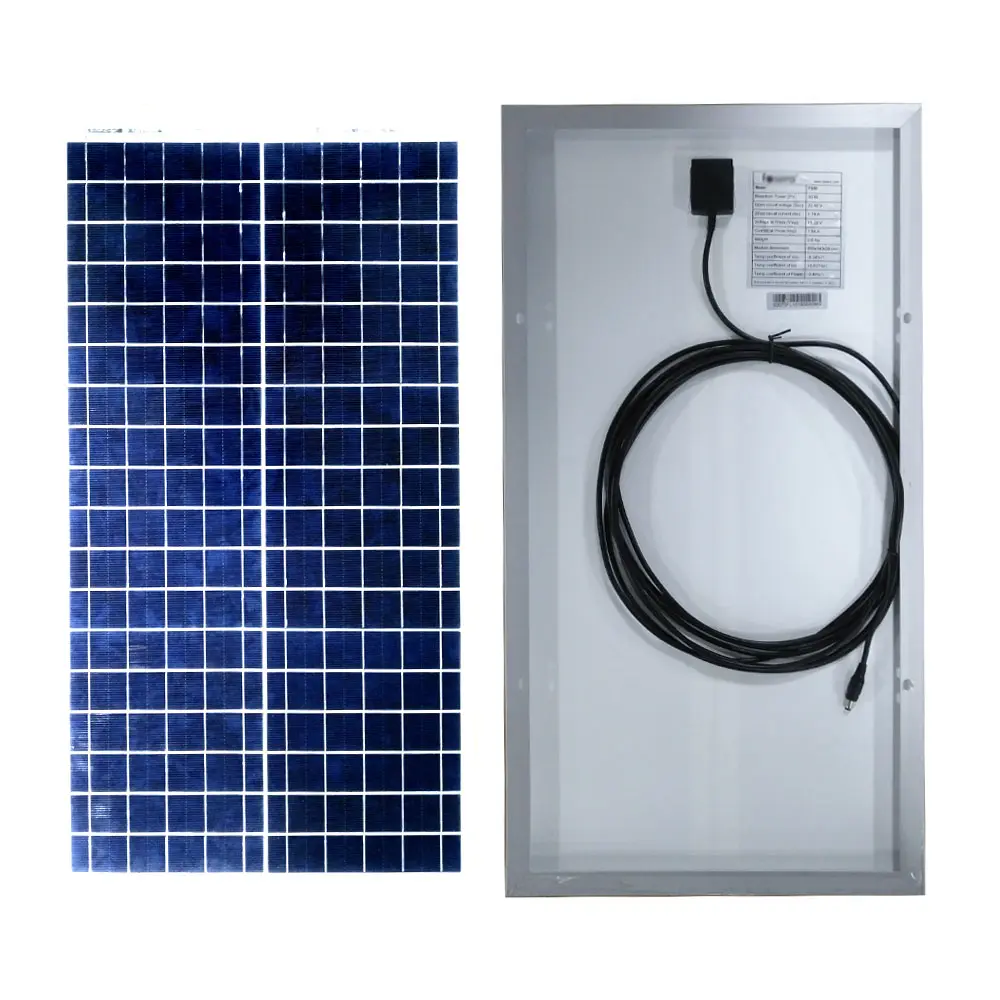

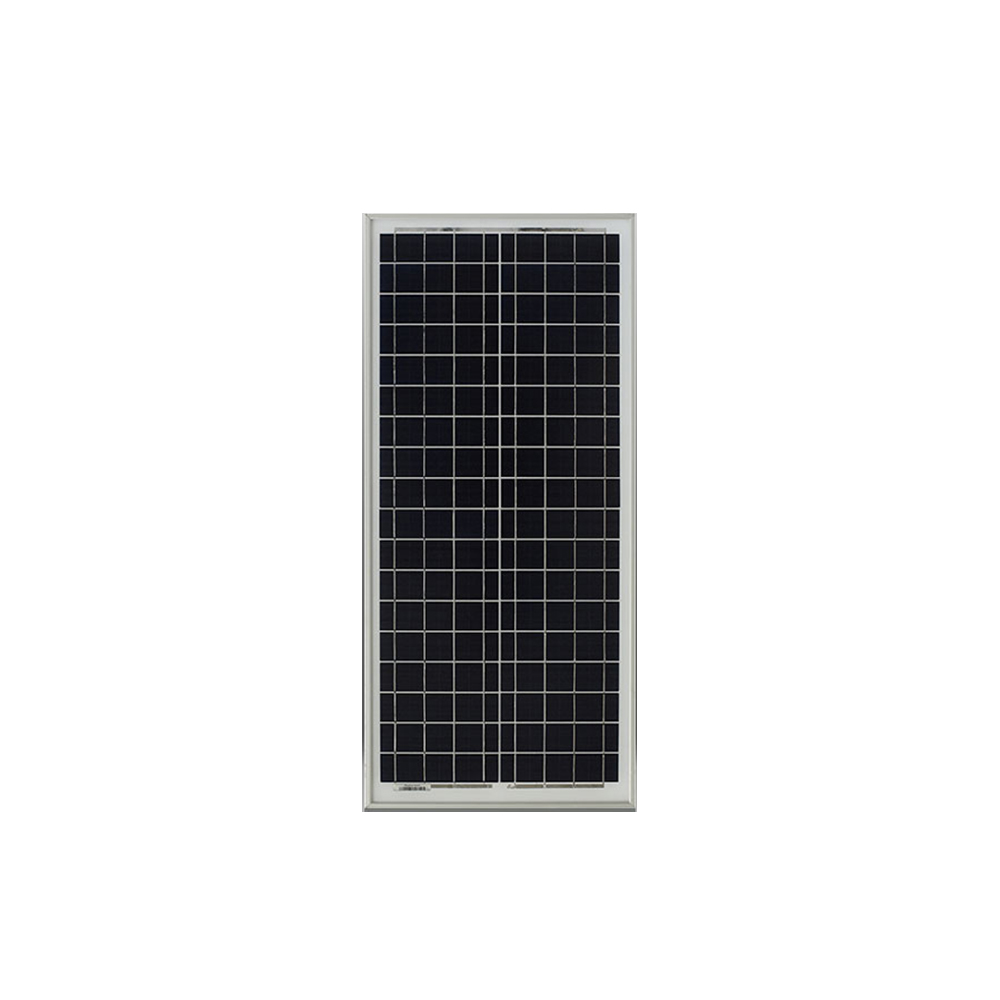

30 Watt 18 Volt Polycrystalline Solar Panel - Off grid
P/N: FL030P
30 Watt 18 Volt
350 x 650 x 25mm
Designed for Solar Home Systems & Solar Street Lights
Overview of Polycrystalline Solar Panels (10W - 310W)
Polycrystalline solar panels are a common and stable solution for renewable energy applications, suitable for residential, commercial, and industrial use. These panels are widely used in both on-grid and off-grid systems. However, along with the cell tech innovation, poly cells are in short supply and are not being upgraded.
Key Features of Polycrystalline Solar Panels
1. **Durability**: Designed for a service life of up to 25 years with low degradation rates.
2. **Stable Performance**: Proven technology with efficiencies between 17% and 19%.
3. **Environmentally Adaptable**: Reliable in a variety of climates, from tropical to high-altitude areas.
4. **Ease of Installation**: Compatible with MC4 connectors, enabling quick and reliable setups.
Applications
-Off-Grid Systems**: Perfect for remote areas, including mountain villages, islands, and isolated regions.
-Outdoor Lighting**: Effective for streetlights, garden lights, and parking lot systems.
-Agricultural Use**: Supports irrigation systems and sustainable farm management.
-Emergency Power**: Provides reliable backup during natural disasters and outages.
-Telecom Stations**: Powers base stations in locations without grid connectivity.
Technical Specifications by Power Range
Small-Scale Panels (10W - 50W)
Compact and portable, these are designed for small off-grid systems and portable energy needs.
|
Model |
Power (W) |
Voc (V) |
Vmp (V) |
Isc (A) |
Imp (A) |
Dimensions (mm) |
Weight (kg) |
|
FL010P |
10 |
21.8 |
18.72 |
0.58 |
0.53 |
350×250×17 |
0.9 |
|
FL015P |
15 |
21.8 |
18.72 |
0.87 |
0.80 |
400×350×27 |
2.1 |
|
FL020P |
20 |
21.8 |
18.72 |
1.15 |
1.07 |
470×350×20 |
1.8 |
|
FL025P |
25 |
21.8 |
18.72 |
1.44 |
1.34 |
550×350×20 |
2 |
|
FL030P |
30 |
21.8 |
18.72 |
1.73 |
1.60 |
650×350×25 |
2.5 |
|
FL040P |
40 |
21.8 |
18.72 |
2.31 |
2.14 |
680×450×25 |
3.5 |
|
FL050P |
50 |
21.8 |
18.72 |
2.88 |
2.67 |
680×530×25 |
4.2 |
Medium-Scale Panels (75W - 150W)
These panels strike a balance between portability and energy output, ideal for small to medium-sized off-grid setups.
|
Model |
Power (W) |
Voc (V) |
Vmp (V) |
Isc (A) |
Imp (A) |
Dimensions (mm) |
Weight (kg) |
|
FL060P |
60 |
21.8 |
18.72 |
3.46 |
3.21 |
680×610×30 |
5.3 |
|
FL75P |
75 |
21.8 |
18.72 |
4.33 |
4.01 |
770×680×30 |
6.5 |
|
FL80P |
80 |
21.8 |
18.72 |
4.62 |
4.27 |
840×680×30 |
7.3 |
|
FL90P |
90 |
21.8 |
18.72 |
5.19 |
4.81 |
920×680×30 |
8 |
|
FL100P |
100 |
21.8 |
18.72 |
5.77 |
5.34 |
1000×680×30 |
6.3 |
|
FL120P |
120 |
21.8 |
18.72 |
6.92 |
6.41 |
1185×680×30 |
10.3 |
|
FL150P |
150 |
21.8 |
18.72 |
8.65 |
8.01 |
1480×680×35 |
11 |
|
FL165P |
165 |
21.8 |
18.72 |
9.52 |
8.81 |
1480×680×35 |
11 |
Large-Scale Panels (165W - 310W)
Optimized for high-output applications, these panels are suitable for residential, commercial, and industrial power systems.
|
Model |
Power (W) |
Voc (V) |
Vmp (V) |
Isc (A) |
Imp (A) |
Dimensions (mm) |
Weight (kg) |
|
FL260P |
260 |
36.2 |
31.2 |
9.00 |
8.33 |
1650×992×35 |
17.5 |
|
FL310P |
310 |
42.3 |
37.4 |
8.95 |
8.29 |
1970×992×35 |
21 |
Temperature Coefficients and Environmental Ratings
- **Temperature Coefficient (Pmax)**: -0.40%/°C
- **Operating Temperature Range**: -40°C to +85°C
- **Waterproof Rating**: IP65, ensuring protection against water and dust.
- **Mechanical Strength**: Supports wind pressure up to 2400Pa and snow loads up to 5400Pa.
Advantages of Polycrystalline Panels
1. Wide Power Range: Offers models from 10W to 310W to suit diverse applications.
2. Efficiency in Varied Conditions: Low temperature coefficients ensure stable output.
3. Reliable Materials: Built with 3.2mm tempered glass and anodized aluminum alloy frames.
4. Longevity: Designed to last 25 years, offering long-term energy generation.
5. Global Application: Flexible in powering systems in rural, urban, or industrial setups.
Design and manufacture customized Solar Panels, providing tailored solar solutions for industrial, residential, and other applications.
