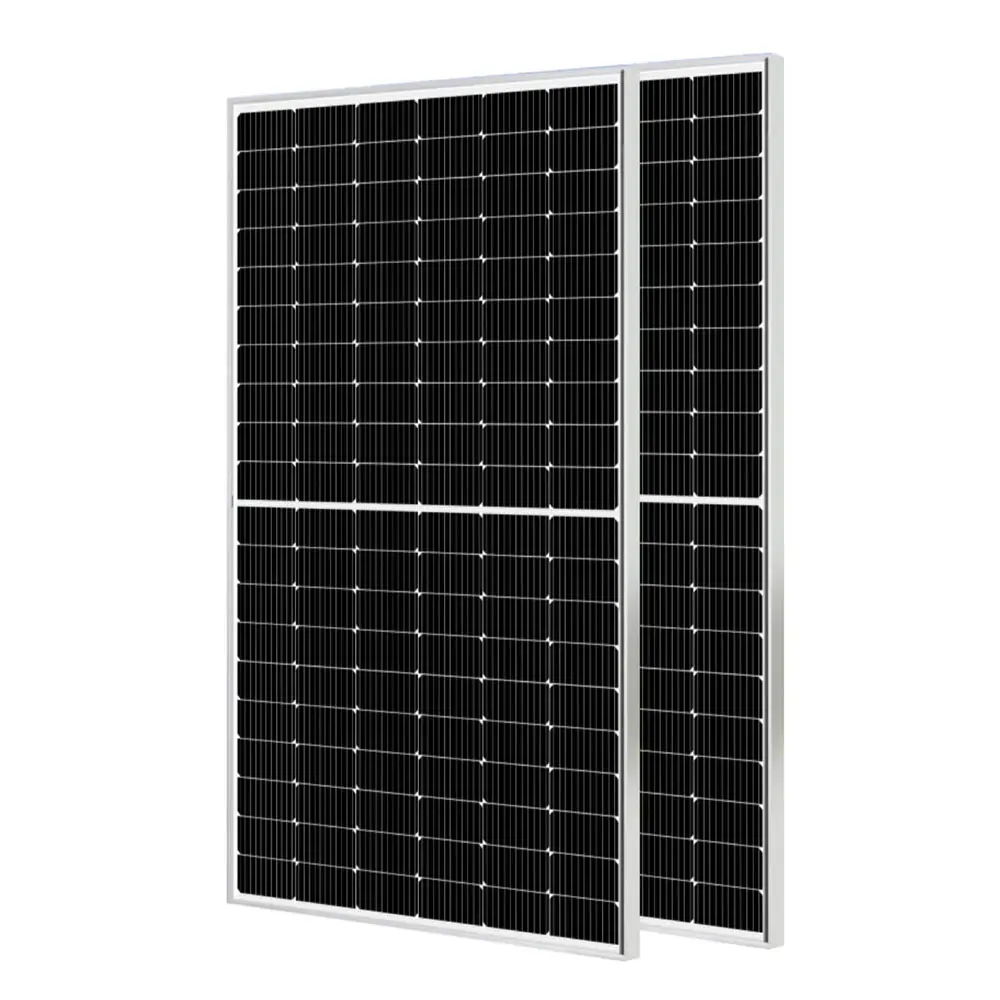

450 Watt 120 Half Cut Cells On Grid Solar Panel


450 Watt 120 Half Cut Cells On Grid Solar Panel

P/N: MSD450M-120

450 Watt 120 Half Cells

1909 x 1134 x 35mm

Glass Solar Panel With Frame

Designed for On grid solar system & Solar plant

MSD450M-120 Series Specification Sheet

Overview

The MSD450M-120 series is a high-performance monocrystalline solar panel equipped with 182 high-efficiency half-cut solar cells. Specifically designed to provide dependable energy solutions, this solar panel is an excellent choice for residential, commercial, and industrial applications.

Key Features

  • High Efficiency: Up to 23% cell efficiency.
  • Durable & Long Lifespan: Engineered with durable materials for an extended lifespan of up to 25 years.
  • Flexibility: The aluminum frame is versatile and can be custom-designed and installed to suit user needs and site conditions, offering adaptability regardless of region or climate.
  • Warranty: 10 years of workmanship and raw materials.
  • Customizable: Open to customization based on client requirements.

Applications

  • Remote Areas: Perfect for use in remote mountainous regions, off-grid locations, islands, communication base stations, streetlights, etc., addressing the electricity needs of local residents and facilities.
  • Commercial usage: Typical panel model for on-grid solar system, ground solar system, and roof solar system.
  • Emergency Backup: Ideal for areas prone to frequent power interruptions or unexpected disasters, serving as an emergency backup energy source and ensuring the seamless operation of critical loads.

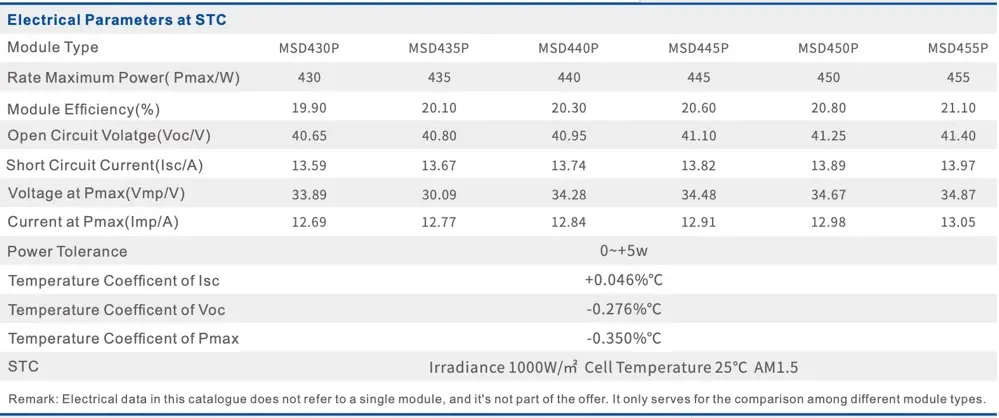

Technical Data

  • Model: MSD450M-120
  • Power: 450Wp
  • Open Circuit Voltage (Voc): 41.25V
  • Maximum Power Working Voltage (Vmp): 34.67V
  • Short Circuit Current (Isc): 13.89A
  • Maximum Power Working Current (Imp):12.98A
  • Size: 1909 x 1134 x 35mm
  • Weight: 23.9 kg
  • Front Glass: 3.2mm tempered ultra-white glass
  • Frame Material: Aluminum alloy
  • Junction Box: IP67 waterproof level
  • Connector: MC4 compatible type
  • Maximum System Voltage: 1000V DC
  • Temperature Coefficient (Pmax): -0.35%/℃
  • Temperature Coefficient (Voc): -0.276%/℃
  • Temperature Coefficient (Isc): 0.046%/℃
  • Working Temperature Range: -40℃~+85℃


All technical data based on the Standard Test Conditions: AM=1.5, E=1000W/m², TC=25°C
