FL40M Specification Sheet

Overview

The FL40M is a high-performance monocrystalline solar panel equipped with 158 high-efficiency solar cells. Specifically designed to provide dependable energy solutions for solar traffic applications.

Key Features

• High Efficiency: 22~23% cell efficiency.
• Durable & Long Lifespan: Engineered with durable materials for an extended lifespan of up to 15 years.
• Warranty: 5 years of workmanship and raw materials.
• Customizable: Open to customization based on client requirements.

Applications

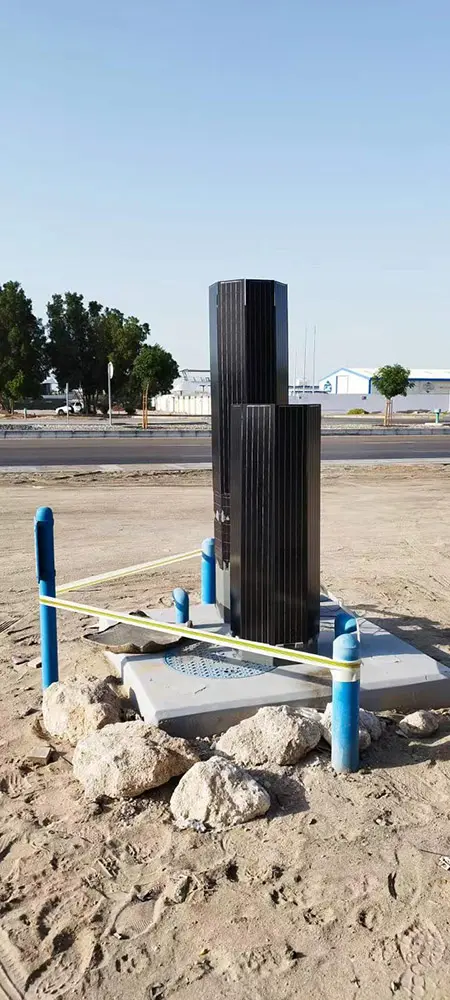

• Remote Areas: Perfect for use in remote mountainous regions, off-grid locations, islands, communication base stations, streetlights, etc., addressing the electricity needs of local residents and facilities.

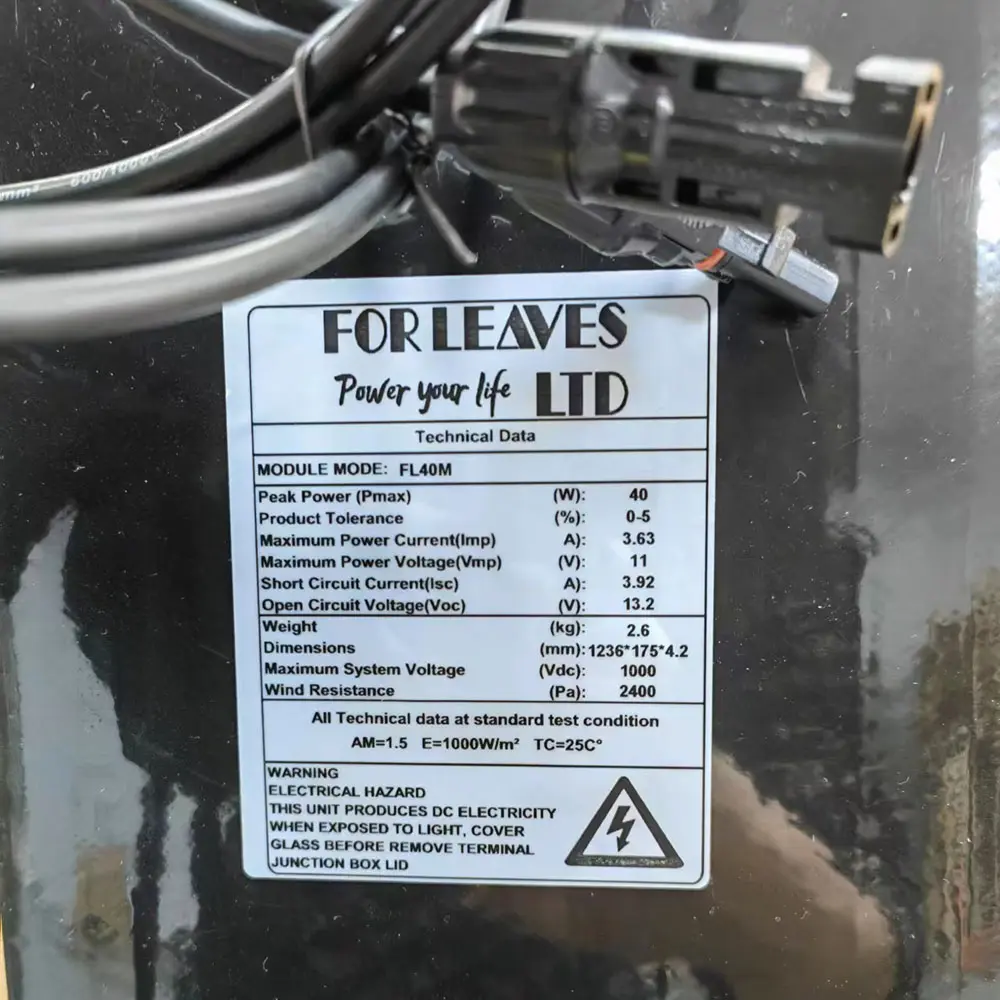

Technical Data

• Model: FL40M
• Power: 40Wp
• Open Circuit Voltage (Voc): 13.2V
• Maximum Power Working Voltage (Vmp): 11V
• Short Circuit Current (Isc): 3.92A
• Maximum Power Working Current (Imp): 3.63A
• Size: 1236 x 175 x 4.5mm
• Weight: 2.6 kg
• Front Glass: 3.2mm tempered ultra-white glass
• Junction Box: IP65 waterproof level
• Connector: MC4 compatible type
• Maximum System Voltage: 1000V DC
• Temperature Coefficient (Pmax): -0.45%/℃
• Temperature Coefficient (Voc): -0.35%/℃
• Temperature Coefficient (Isc): 0.05%/℃
• Working Temperature Range: -40℃~+85℃

All technical data based on the Standard Test Conditions: AM=1.5, E=1000W/m², TC=25°C
